Summary 1:

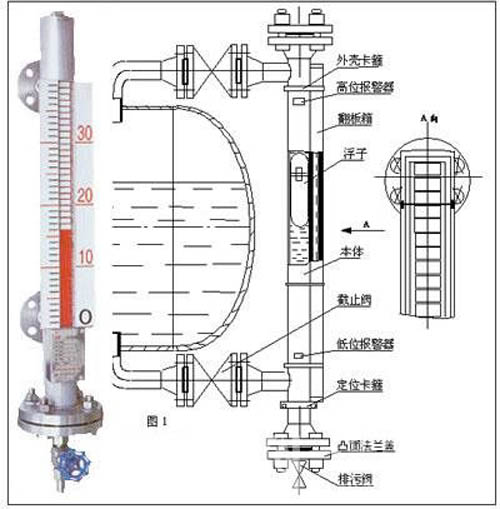

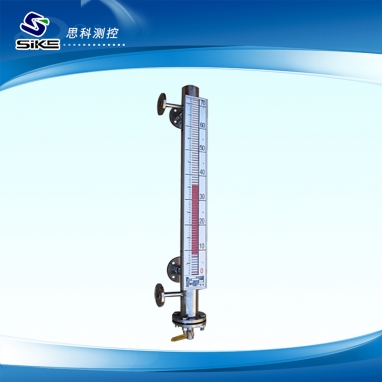

Standard cavity magnetic flap liquidometer also called magnetic column, magnetic frame, magnetic float level meter, can be in high temperature and high pressure, high viscosity and strong corrosion conditions, safe and reliable to measure the liquid level, degree, display striking, wide measuring range. This series of products are widely used in electric power, petroleum, chemical industry, metallurgy, environmental protection, medicine, food and other industries in the process of liquid level measurement and control.Magnetic level gauge is divided into top mounted magnetic float level gauge and side mounted magnetic float level gauge (also called float level gauge and magnetic flap level gauge)
According to the installation position is different, the container to provide side, top, top side show type, etc. According to different working medium, the provide 304/316 l stainless steel, stainless steel lined with ptfe, ABS, PP - R, UPVC material, such as ABS, PP - R, UPVC, stainless steel lining ptfe material suitable for acid, alkali and other corrosive medium. In addition to the basic, and high temperature and high pressure, corrosion, clamp cover model, frost prevention type, electric heating type, electronic double color type, and other forms to choose from.
Summary 3:
Working principle: by static pressure measurement principle: when the liquid level transmitter into the liquid to be tested in a certain depth, the sensor to meet the pressure on liquid level formula is: Ρ = rho. We + Po type: P: transmitter into liquid level pressure rho: the measured liquid density g: local acceleration of gravity Po: head H: atmospheric pressure transmitter into the depth of the liquid at the same time, through the gas leading stainless steel will be introduced to the liquid pressure sensor of positive pressure cavity, and the atmospheric pressure on the surface of the liquid Po and sensors connected to the negative pressure cavity, to offset the Po on the of the sensor, the sensor measured pressure is: rho. We, obviously, through the acquisition of pressure P, you can get the depth of the liquid level.
Summary 4:
Technical specifications:
Measuring range: 300 ~ 15000 ㎜ (more than 6000 mm or transportation conditions are not allowed to exceed the length of the level gauge can be procurement section)
Display precision: plus or minus 10 mm;
Pressure of work: 6.3, 10.0, 16.0, 10.0 MPa;
Medium temperature: - 20 ℃ ~ 450 ℃;
Medium density: p. 0.5 g/cm3;
Medium density difference: p. 0.15 g/cm3 (measurement community)
medium viscosity: 0.4 Pa s. or less;
Process connection: 3/4 "/ 25 PN1.0 (executive standard HG20592 ~ 20635-97), if you need other standard can be made according to customer's requirements;
Pick up liquid material: 316 ss, 316 l, and so on (according to the chemical properties and the use of medium temperature pressure selection).
Float material: 316 ss, 316 l, titanium, etc.
