Summary:

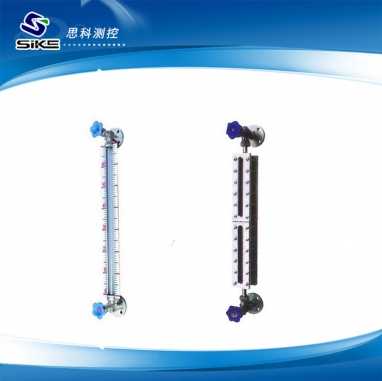

ULB type glass level gauge (hereinafter referred to as the level) is suitable for direct display of liquid sealing in the pressure vessel liquid level height, can be used in chemical, fertilizer, oil refining, pharmaceutical, oil, electric power, shipbuilding, locomotive boiler industry container, etc. ULG type is indicated by an airtight container glass tube liquid level gauge is mainly used for transparent liquid level. Parts in contact with the liquid, with high quality stainless steel and poly (acrylonitrile four plastic, silicon glass manufacturing. Suitable for chemical, fertilizer, food etc. This product conforms to the professional standard ZBN12 00389 glass level gauge.

Pervious to light glass level gauge, glass level gauge ULB - 1, the ULB - 1 a is suitable for the colorless transparent liquid, and the light good place.

With a steam jacketed pervious to light glass level gauge, glass level gauge ULB - 2, the ULB - 2 a outdoor suitable for cold area or liquid to be heated, with steam heating jacket on the pervious to light type.

Reflective glass level gauge, glass level gauge ULB - 3, the ULB - 3 apply to have a color liquid, and the light good place.

With steam jacketed reflective glass level gauge, glass level gauge ULB - 4, the ULB - 4 a outdoor suitable for cold area or liquid to be heated, on reflection type with steam heating jacket.

Continuous transmission type glass level gauge, the glass level gauge ULB - 5, ULB - 5 a is suitable for continuous indicating level required.

High temperature glass level gauge, glass level gauge ULB - 6, the ULB - 6 a is suitable for high temperature environment, requirements on the instruction level navigation and, using high temperature heat-resistant glass and excellent high temperature resistant material.

Double color glass level gauge, glass level gauge ULB - 7, the ULB - 7 is used to light a good place, colorless transparent liquid.

Frost prevention type glass level gauge, glass level gauge ULB - 8 a suitable for low temperature medium, attached to avoid caused by low temperature medium appearance coagulate frost device.

High pressure type glass level gauge, glass level gauge ULB - 9 a is suitable for high pressure environment is low level instructions required.

Features:

The direct reading type, reading accurate and reliable;

Simple structure, looping flange connection;

Good sealing, reliable operation, easy installation, maintenance;

Corrosion resistance;

Simple structure, convenient maintenance;

Interface clear;

Safe and reliable work, no jam, no leakage;

With a variety of structure type and installation method, suitable for all kinds of liquid level measurement in different environments.

Basic principles:

Instrument M27 x 1.5 are fitted on the top and bottom valve or ZG3/4 "nipple, through flange connected to the container constitute connectors, through the glass plate can be directly read container liquid level height.

Instrument in fluctuation in all equipped with ball valve, when the glass is destroyed because of an accident, steel ball within the container pressure blocking channels, so the container automatically seal, container can prevent the liquid to drain.

In the valve side has blocked hole screw, available for sampling with, or, at the time of maintenance releases instrument in the residual liquid in use.

Technical indicators:

Measurement range (installation center distance L) : 300, 500, 800, 1100, 1400, 1700,... Mm.

Mixer PN4.0 3/4 ". HGJ - 47-91

Mixer thread installed outside the G3/4 "(or M27 (1.5)

Material: carbon steel, stainless steel

Heating steam pressure: 0.6 MPa

Steam jacketed joint: G1/2 "male

Ball valve pressure: 0.2 MPa
