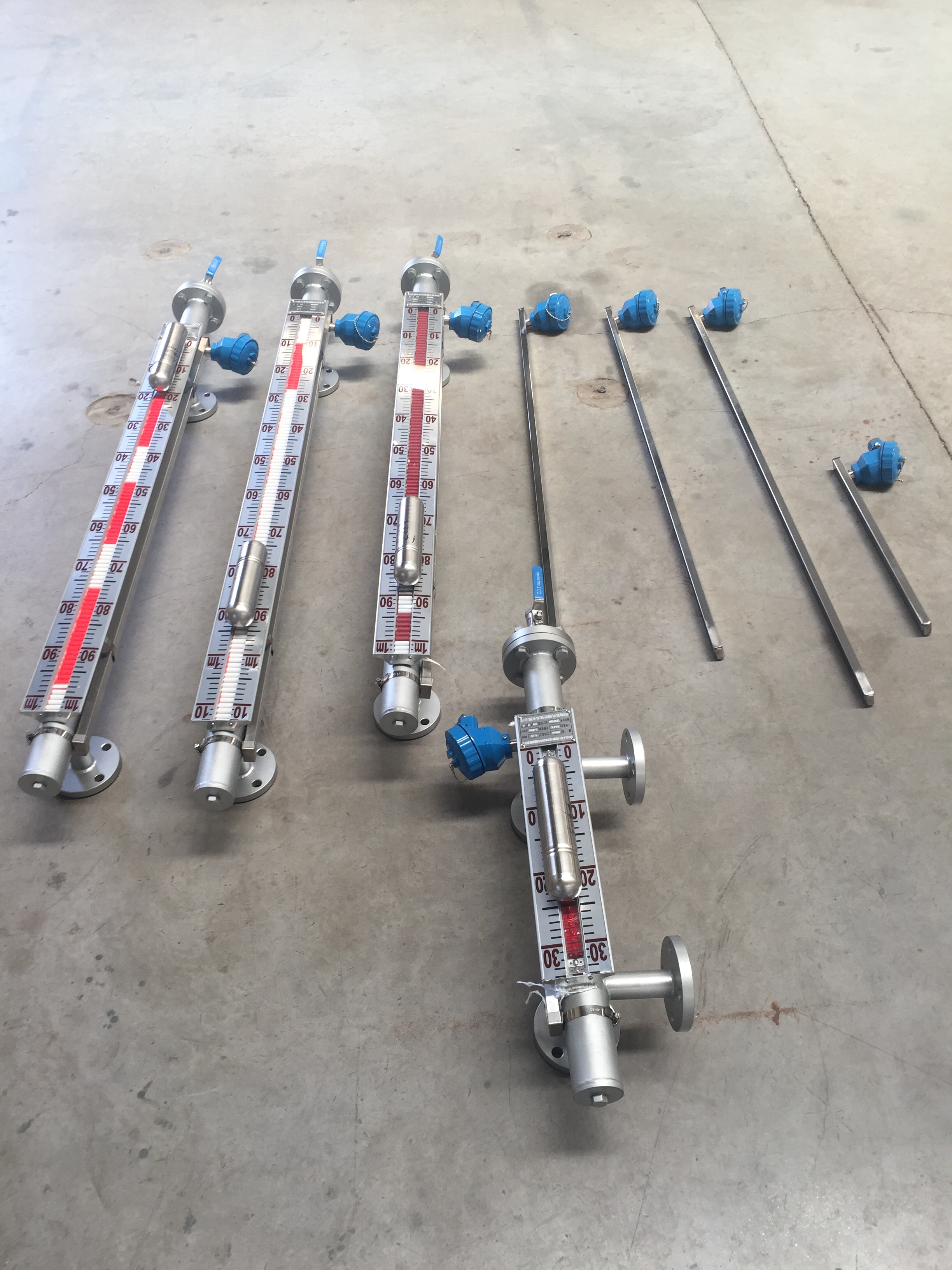

Assembling the Magna-Level Gauge

2019-06-28

Step 1: Carefully install the float, top end first, through the open flange at the bottom of the Gauge Housing Chamber. Be sure the “TOP” label on the float is pointed toward the top of the chamber.

Note: It is recommended that valves be installed in both the upper and lower vent ports in the Gauge Housing Chamber. Having these valves in place will provide means for depressurizing and draining the chamber if needed.

Step 2: Enclose the float inside the Gauge Housing Chamber by attaching the flange cover plate with the bolts and nuts provided. Use an anti-seize lubricant on the threads as a safeguard to prevent galling. Be sure the flange gasket is positioned to seal properly before tightening bolts and nuts.

Note: Proper bolting procedures should be followed, including correct torquing patterns and values. Before putting the Magna-Site into service, verify that the Gauge Housing Chamber is sealed with no openings to the atmosphere.
