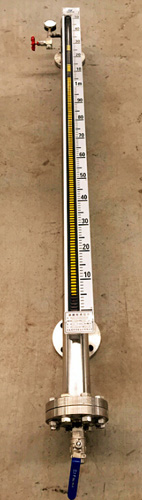

Magnetic level gauge turning principle, installation and characteristics
Magnetic level gauge is often used in industry to turning liquid level measuring instrument, because in under the condition of high temperature and high pressure, high viscosity, strong corrosion can be safe and reliable measurement of liquid level, and the environmental impact is small, so in the petroleum, chemical, electric power, metallurgy, environmental protection, medicine and food industries widely used. SIKE measurement and control technology co., LTD. In this paper, as part of the magnetic flap liquid level meter is not very familiar with the customer to the principle, installation, characteristic with simple instructions, know that using common level measurement.
First this paper introduces the principle of the magnetic flap liquid level meter is a magnetic float sensor, and through the inspcetion and display color column magnetic body of magnetic induction effect, reflect the bai measuring liquid level measuring instrument or interface. Magnetic level gauge turning the basis of the principle of communicating vessels, to guarantee the container under test and measurement of liquid level between the tube body is equal, when the measuring tube float with the measured liquid level in the amount of change, the magnetic float body and shown on the display panel color column in the magnetic body, make the color column, white said aneroid, red liquid, to hit the local display liquid level of the resin. According to the principle of the design of the level there are glass tube is often used to () the level of glass column and boiler, it is according to the principle of design, the use of magnetic level gauge according to the working condition of turning more clearly, the above introduction over the principle of magnetic flap liquid level gauge.
We know the magnetic level gauge installation, turning before installing we need to consider the internal magnetic flap liquid level gauge is the most important components, the use of these parts directly affect the magnetic flap liquid level gauge. Such as magnetic float level meter in turning, magnetic level gauge installation when turning if place upside down, up and down will affect the normal use, magnetic float level gauge turning is generally a head, a light, vertical installed on the magnetic flap will float level gauge within the main words need to be a head down, or if the inversion of magnetic level gauge can't turning on the rise or fall freely within the main affect normal use. Magnetic level gauge indicator turning installation live on the outside of tank top, and control the barrel tank used to denote the level, a closed form according to the need to install drain valve. In custom flange acceptable level of a kind of control instrument, indicator is composed of magnetic tablet, vacuum indicator tube, when the benzene body tube is the maglev ball with color liquid level rises, can display liquid level height. Can also be used on the pipe body with magnetic switch or remote transmitter, switch signal output signals. Suitable for high temperature and high temperature, corrosion resistance, low can display and remote control. Magnetic flap body business work with seamless steel tube, using the hole connecting pipe welding, internal without scratches. Magnetic level gauge installation can choose turning side, top and side top, bottom seal, magnetic level gauge turning ontology either way can bundle version of remote transmission device, after bundling type magnetic level gauge turning can be called far the magnetic level gauge, turning to complete electric remote transmission, to match the recording instrument, or industrial control computer connected to the Internet.
Advantages and features: in situ show that the magnetic level gauge with direct display, eye-catching, turning Angle of wide, compact structure and reasonable, safe and reliable, no (run, run, drip, leak, etc.) phenomenon appears, free maintenance, low maintenance cost advantages, and the instruction function without additional power supply, even if the power supply fails, the observation will not be affected, is the ideal liquid level measuring instrument.
Above is the magnetic flap principle of liquid level meter, brief description of the characteristics of the installation, if you have other questions can call detailed consultation!
