Magnetic flap liquid level meter application advantages of tank liquid level measurement
Magnetic level gauge is also called magnetic level gauge, turning inspcetion level gauge, magnetic column level gauge, liquid level, spherical tank, storage tank level measurement is the process of the common level gauge, is developed according to the principle of buoyancy and magnetic coupling effects, using the measuring cylinder in magnetic float along with the rise and fall, measured on the surface of the liquid through the attraction of the magnetic field, the measuring cylinder external double color double column then turn on the display, display the measured liquid level to achieve the purpose. Henan SIKE measurement and control technology co., LTD. In this article introduces the applications of magnetic liquid level gauge measuring tank liquid level turning and advantages.
Application: high temperature magnetic level gauge is suitable for turning at high temperature and high pressure liquid, measuring liquid level the highest temperature can reach 450 degrees. Is widely applied to petrochemical industry, food, environmental protection, metallurgy and other industries. Due to the medium completely sealed in the liquid level meter, so for the inflammable, explosive, toxic, corrosive liquid is very suitable.
Advantages of advantages:
1, measurement channel is smooth and straight, not blocked, suitable for measuring the liquid-solid two-phase liquid containing solid particles, such as pulp, slurry, sewage, etc.;
2, measured by the actual volume flow is not affected by the density, viscosity, temperature, pressure and conductivity changes significantly affect;
3, large flow range, wide range of diameter, able to quickly direct observation readings, volume is small.

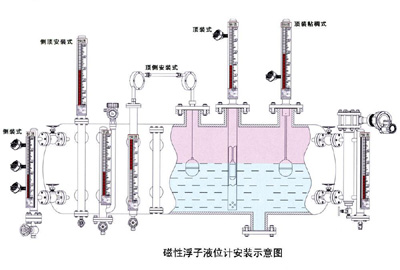

4, magnetic level gauge turning to a side, top and side of installation, no matter that way can bind remote transmission device, can make the magnetic level gauge is turning in show level, can remote monitoring level. After binding type magnetic level gauge turning can be called far the magnetic flap liquid level gauge.
5, magnetic flap level gauge (also known as magnetic level gauge, magnetic level gauge, double column inspcetion liquid level meter, it is the use of magnetic coupling principle for work), magnetic level gauge turning makes up for the glass tube liquid level meter cannot work under high temperature and high pressure and fragile multiple faults.
6, magnetic flap liquid level gauge is based on magnetic float sensor, and through the magnetic float and display of the magnetic body in the color column magnetic coupling effect, reflect the measured liquid level measuring instrument or interface.
7, magnetic level gauge indicator turning installation or on the outside of tank top, and control the liquid level inside the tank, used to denote a closed form according to the need to install drain valve. In the flange can accept customization level of a kind of control instrument, indicator is composed of magnetic tablet, when body inner magnetic float level increase in color piece, can display liquid level height. Can also be used on the pipe body with magnetic switch or remote transmitter, or signal output switch signal. Suitable for high temperature and high pressure, corrosion resistance, etc, can be on the display and remote control. Magnetic flap level gauge tube body adopts the seamless steel pipe, using the hole connecting pipe welding, internal without scratches. Magnetic flap to gauge installation can choose side and roof, magnetic level gauge ontology turning the bottom seal.
8, in situ show that the magnetic level gauge with direct display, eye-catching, turning Angle width, structure is compact and reasonable, safe and reliable, no phenomenon of "run, run, drip, leak, less maintenance, low maintenance cost advantages, and its instruction function without additional power supply, even if the power supply fails, the observation will not be affected, is the ideal liquid level measuring instrument.
9, magnetic level gauge application principle of communicating vessels turning to ensure that the container under test and measurement of liquid level between the tube body is equal, when the measuring tube float with the measured liquid level in the amount of change, the float of the magnetic body and shown on the display panel color column of the magnetic body, make the color column, white said aneroid, red for a fluid, in order to achieve local display, the value of liquid level.
10, magnetic level gauge if turning resistance level sensor configuration UR type, type or UB resistance - current liquid level transmitter and standard signal, to match the recording instrument, or industrial control computer connected to the Internet.
To sum up, according to the application and advantages of magnetic flap liquid level meter liquid level measurement in industry that is the perfect choice!
