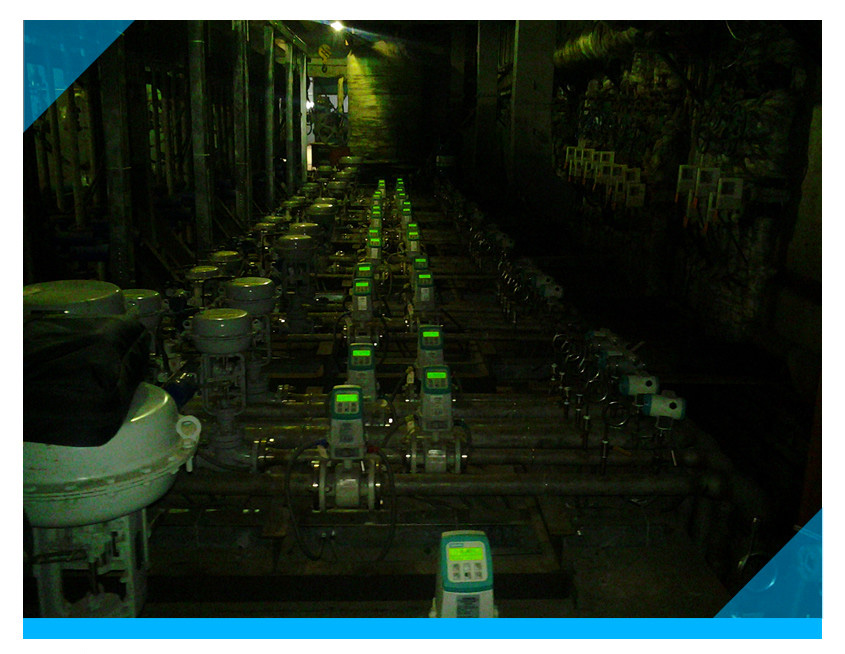

Siemens electromagnetic flowmeter
product | model | Use occasions | Characteristics and the matters needing attention | |
converter | MAG5000 | 7ME6910- | Water/sewage,chemical,pharmaceutical,food/beverage/concrete/cement,mining HPI | 1,MAG5000 accuracy is 0.5%; 2,MAG5000 only supports HART communication, and the power supply of 220 v. 3,MAG5000/6000separation installation must match bracket,cable*2; 4,explosion-proof |
converter | MAG6000 | 7ME6920- | Water/sewage,chemical,pharmaceutical,food/beverage/concrete/cement,mining HPI | 1,MAG6000 accuracy is 0.25%; Batch processing function; Electrode cleaning 2,MAG6000 supports HART,PA,DP,bus communication,choose the fission or localization should be plus communication module; 3,explosion-proof |
converter | MAG6000I | 7ME6930- | Water/sewage, chemical, pharmaceutical, food/beverage/concrete/cement, mining and HPI | 1,the accuracy is 0.25%; 2,separation, scene show; 3,has been installed with wall bracket; 4,support HART,PA,DP,bus communication,but must add communication module; 5,MAG6000 I can do one size,but and sensors is model,all imports |
converter | MAG6000+Ex barriere | 7ME6920- | Chemical, pharmaceutical | 1,the accuracy is 0.25%; 2,separation wall type, do not need to support; 3,need to choose when Cleaning the electromagnetic Cleaning unit MAG6000 + Cleaning unit. This is the most economic; 4,cleaning unit is used for measuring easy combustion and explosive media; |
converter | MAG6000+ Cleaning unit | 7ME6920- | Water/sewage | 1,the accuracy is 0.25%; 2,separation wall type, do not need to support; 3,need to choose when Cleaning the electromagnetic Cleaning unit MAG6000 + Cleaning unit. This is the most economic; 4,cleaning unit is used for measuring easy combustion and explosive media; |
converter | Transmag 2 | 7ME5034- | Mining/concrete/cement, pulp paper industry | 1,the precision of 0. 5%; 2,the characteristics of alternating pulse magnetic field, measurable levels of the pulp,solid content is more than 3%; 3,support HART,PA communications 4,used with 911/E |
converter | MAG8000/ MAG8000 CT | 7ME6810/ 7ME6820 | Water/sewage,chemical,pharmaceutical,food/beverage/concrete/cement,mining,HP | 1,the battery power supply of electromagnetic meter, suitable for field irrigation 2,the accuracy is 0.4%,IP68 protection grade 3,MAG8000 CT has trade certification |
sensor | MAG1100 | 7ME6110- | Water/sewage,chemical,pharmaceutical,food/beverage/concrete/cement,mining HPI | 1,will give pipe diameter,and graphs or use software to calculate the velocity of flow control products whether meet the requirements of the Siemens electromagnetic flowmeter,flow rate of 3~5 m/s best; 2,process connection is blessing type; 3,MAG1100 caliber is DN2 ~ DN100;Only the PFA and ceramic lining; Standard EPDM gaskets,if not suitable can choose the other material from the attachment; 4,MAG1100 HT is DN15~DN100;Ceramic lining,platinum electrode,graphite gaskets,size; 5,MAG6000 and MAG1100 PFA lined with matching accuracy is 0.5% 6,MAG1100 in pipe diameter is DN2 - DN10 standard pipe connection adapter |
sensor | MAG1100 HT | 7ME6120- | Water/sewage/concrete/cement,chemical,mining,HPI | 1,will give pipe diameter,and graphs or use software to calculate the velocity of flow control products whether meet the requirements of the Siemens electromagnetic flowmeter,flow rate of 3~5 m/s best; 2,process connection is blessing type; 3,MAG1100 caliber is DN2 ~ DN100;Only the PFA and ceramic lining; Standard EPDM gaskets,if not suitable can choose the other material from the attachment; 4,MAG1100 HT is DN15~DN100;Ceramic lining,platinum electrode,graphite gaskets,size; 5,MAG6000 and MAG1100 PFA lined with matching accuracy is 0.5% 6,MAG1100 in pipe diameter is DN2 - DN10 standard pipe connection adapter |
sensor | MAG1100 F | 7ME6140- | Chemical,pharmaceutical,and food/drink | 1,the process connection type for health connection,welding joint; 2,diameter is DN10~DN100;Inside lining material for the PFA and ceramics; |
sensor | MAG3100 | 7ME6310- | Water/sewage,chemical,pharmaceutical,food/beverage/concrete/cement,mining HPI | 1,MAG3100 localization, when placing order, don't tube fission or one transmitter and sensor requires two order number; MAG3100 explosion-proof without local; 2, process connection for flange connection 3, diameter is DN15 ~ DN2000, soft rubber localization can do 2200 mm; 4, lining materials of soft rubber, hard rubber, PTFE for domestic; 5, for process piping insulation material, or metal process piping, insulation lining will add grounding ring/grounding electrode 6, electromagnetic flowmeter IP68 must choose waterproof glue order number (cheap glue, the user's own site), or add order number Z type Y41 (cable must be matched, glue factory, more expensive), and must be installed by fractal shape; 7, grounding electrode/ring material should be the same as the electrode material, to avoid the corrosion; Rubber lining from the distribution, do not need to choose the grounding electrode/ring; |
sensor | MAG3100 HT | 7ME6320- | Chemical,pharmaceutical,food/beverage,HPI | 1,the diameter is DN15~12 2,high temperature type must adopt fission installation (above 175 ℃) |
sensor | MAG3100 P | 7ME6340- | Water/sewage,chemical,pharmaceutical,food/beverage,HPI | Diameter is DN15~DN300 |
sensor | MAG5100W | 7ME6520- | Ground water,drinking water,sewage and sludge treatment industry | 1,caliber DN25~DN1200); 2,lining material is EPDM, hard rubber; 3,hartz alloy electrode,carbon steel flanges |
sensor | 911/E | 7ME51 Rubber lining/7ME52 Novolak lining/7ME53 PTFE lining | Mining/concrete/cement | 1,the precision is 0.5% 2,Transmag measurable mud content was 85%,and the low conductivity 1 us/cm medium; 3,rubber lining matching protection ring,PTFE lining must match protection ring; 4,explosion-proof function; |
1,the basic principle of electromagnetic flowmeter,Faraday's law of electromagnetic induction 2,the electromagnetic flowmeter features: Measurable conductive medium,corrosion resistance,no pressure loss,no stranded Can be two-way flow measurement,2~2200mm diameter range Measurement of volume flow,density,temperature,viscosity,conductivity changes Not measuring gas and liquid contains a lot of gas Unpredictable low conductivity,the temperature is too high and too low in media Susceptible to interference of outside magnetic field With SENSORPROM memory storage chips 3,the measured medium condition and matters needing attention: Deionized water 20 us/cm,that is pure water Electrolyte 5 us/cm (not including water),conductive liquid generally does not burn,but alcohol exception,explosion-proof note model selection of the alcohol 911/E measurable low conductivity us/cm,1,911/E does not have explosion-proof function; Electromagnetic flowmeter measurement in the most taboo in atc,moment to ensure that the pipeline is medium Electrode:HC - can be used to measure the weak base,weak acid, water,industrial waste water can be obtained Titanium-can be used for measuring the lye,high concentration of NaOH,chlorine,nitric acid,do not measure the sulfur acid,hydrochloric acid,hydrofluoric acid,hydrofluoric acid and nitric acid mixture; Tantalum-unpredictable water and aqueous medium,because of tantalum generates oxidation film after out of water,so don't choose in using tantalum electrode under the condition of cleaning unit,unpredictable mixture of hydrofluoric acid and hydrofluoric acid and nitric acid Hydrochloric acid tantalum electrode are available,and also can use Pt,but more expensive Pt generally don't have to Hydrofluoric acid has strong corrosive,Pt test;If the mixture of hydrochloric acid and hydrofluoric acid with Pt |
