The Operation of Orifice Meter
2019-06-05

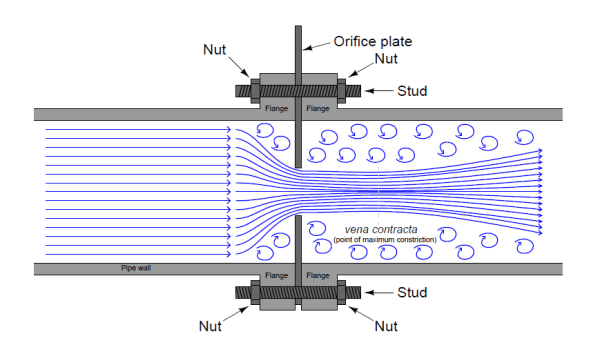

The Orifice plate is differential pressure flow measurement device. An orifice is simply a smooth disc with a round, sharp-edged inflow aperture and mounting rings.
· The fluid flows inside the Inlet section of the Orifice meter having a pressure P1.
· As the fluid proceeds further into the Converging section, its pressure reduces gradually and it finally reaches a value of P2 at the end of the Converging section and enter the Cylindrical section.
· The differential pressure sensor connected between the Inlet and the and the Cylindrical Throat section of the Orifice meter displays the difference in pressure (P1-P2). This difference in pressure is in direct proportion to the flow rate of the liquid flowing through the Orifice meter.
· Further the fluid passed through the Diverging recovery cone section and the velocity reduces thereby it regains its pressures. Designing a lesser angle of the Diverging recovery section, helps more in regaining the kinetic energy of the liquid.
