SKLG series throttling device
Installation instructions
Henan SIKE measurement and control technology co., LTD
Directory
1, the purpose and characteristics of the.................................................................. (1)
2, the principle..................................................................... (2)
3, the throttle device model, name and conventional scope.............................. (2)
4, the structure diagram and.................................................................. (4)
5, installation and use.................................................................. (8)
6, V cone flowmeter............................................................ (11)
7, the integration of the throttle device......................................................... (12)
8, supply of complete sets of sex and ordering instructions............................................. (12)
9 the consultation sheet, throttling device order................................................... (15)
The throttle device installation instructions
First of all thank you choose our company produces the throttling device and other flow and liquid level instrumentation products. The company will wholeheartedly provide high quality service for you, in order to make sure you use these products well.
The throttle device is divided into standard throttling device and non-standard throttling device two kinds big. All design and installation, and use meet the international standards of ISO5167 and (or) of national standards GB/T2624 called standard throttle device, other called non-standard throttling devices. The dosage of the standard throttle device is greater than the latter, rather than the standard throttle device structure, variety of diameter specification and scope of applicable medium conditions are far more than and greater than the former.
1, the purposes and characteristics
(1) the throttle device with differential pressure transmitter, and other supporting flow totalizer.especially, differential pressure flowmeter, the throttle device installed in the pipeline, is flow measurement. Is mainly used in measuring various gas flowing through a pipe (pure or containing dust), steam (saturated or overheating) and liquid (conductive or non-conductive, strong corrosive, viscous or contained a small dirt particles, etc.) of the traffic. Can be directly measured or volume flow to mass flow.
(2) the characteristics of
Throttling device is first used, is the oldest and dosage the biggest, the most widely used method of flow measurement, it has many main advantages as follows.
1) standard throttle device without a solid flow calibration determine its measuring accuracy. (only) in current meter.
2) apply wide measured medium, can be used in almost all gas, steam and liquid flow measurement.
3) diameter range, 2 ~ Φ Φ 3000 mm (or more); Cross section shape: rounded rectangle.
4) the use of pressure can be up to 32 mpa; Also can be used in the negative pressure.
5) medium temperature range: - 185 ~ + 650 ℃, flowmeter has no other possibility.
6) non-standard throttling device structure varied. Can be used almost all kinds of fluid flow measurement.
7) can be set up by the differential flexible range change flow range at the scene.
8) use, simple operation, easy to master, small amount of maintenance.
2, action principle
Throttling device measuring flow rate is based on the principle of the famous "efforts to fluid mechanics principle. As shown in figure 1 a throttle was laid in pipe. Has a fluid flow through the throttle parts will produce a pressure difference on both sides of the throttling parts (the differential Δ P), then the flow rate is proportional to the square root of the differential pressure:

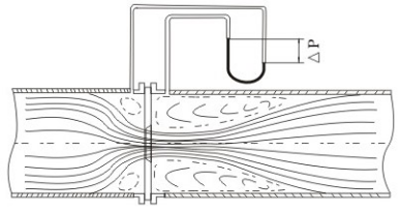

Figure 1 throttling device measuring principle
Volume flow:
Type: A: constant
C: outflow coefficient
β: diameter ratio (= D/D)
d: throttle aperture (mm)
ε: expansiveness coefficient
Δ P: throttle differential pressure (Pa) before and after
ρ: under the condition of fluid density (kg/m3)
3, what is the name of the company the throttle device model, and general applicability
Our company has a standard of two kinds of throttling device and non-standard throttling device, the classification of 26 kinds of throttling device. Model name and conventional scope of application are shown in table 1
Table 1 The classification of 27 kinds of main throttle device, model, name and conventional scope of application
type | model | name | Pipe diameter range (mm) | Using fluid range |
Standard throttle device | SKLGBZ | Take pressure orifice Angle joint (drilling) | DN50~1000 | A variety of temperature and pressure gas, liquid. Steam |
SKLGBH | Angle joint (pressure orifice ring room) | DN50~1000 | A variety of temperature and pressure gas, liquid. Steam | |
SKLGBF | Pressure orifice flange taps | DN50~1000 | A variety of temperature and pressure gas, liquid. Steam | |
SKLGBJ | Take pressure orifice - D / 2 D | DN50~500 | A variety of temperature and pressure gas, liquid. Steam | |
SKLGP | Standard nozzle (ISA1932) | DN50~500 | A variety of temperature and pressure gas, liquid. Steam | |
SKLGPC | The length to diameter nozzle | DN50~630 | A variety of temperature and pressure gas, liquid. Steam | |
SKLGW | Classic venturi tube (classic) | DN1100~1200 | A variety of temperature and pressure gas, liquid | |
Non- standard throttling devices | SKLGBD | Large diameter orifice | DN>1000 | A variety of temperature and pressure gas, liquid |
SKLGBX | Small-bore orifice | DN<50 | A variety of temperature and pressure gas, liquid | |
SKLGBQ | Segmental orifice | 150≤DN≤350 | A variety of temperature and pressure gas, liquid | |
SKLGBP | The eccentric orifice plate | 100≤DN≤1000 | A variety of temperature and pressure gas, liquid | |
SKLGBS | 1/4 round nozzle (orifice plate) | 25≤DN≤500 | A variety of temperature and pressure gas, liquid (dirt) | |
SKLGH | Circular orifice (normal) | DN100~3000 | A variety of temperature and pressure gas, liquid. Steam | |
SKLGHM | Circular orifice (gas with equalizing ring) | DN200~3000 | A variety of temperature and pressure gas, liquid. Steam | |
SKLGHT | With insulation jacket circular orifice | DN200~3000 | All sorts of temperature, pressure, clean dirt or containing tar wet or dry coke oven, the blast furnace and natural gas | |
SKLGTJ | High pressure orifice plate lens | DN100~600 | All sorts of temperature, pressure of gas, liquid and steam | |
SKLGDW | Large diameter venturi tube | DN125~300 | Pressure: 32 mpa, temperature of 100 ℃ or less gas | |
SKLGJW | Rectangular venturi tube | 1200>DN≤3000 | A variety of temperature and pressure gas | |
SKLGSW-C | Plug-in double venturi tube | 1200>500×500 | A variety of temperature and low pressure gas | |
SKLGSW-N | Working "double venturi tube | 400≤DN≤3000 or400×400 | A variety of temperature and low pressure gas | |
SKLGV | V type internal cone type throttling set | DN40~1000 | A variety of temperature and low pressure gas | |
SKLGXE | Wedge flowmeter | DN25~300 | A variety of temperature and pressure gas, liquid. Steam | |
SKLGJY | The wing shape wind device | 500≤DN≤3000 or>500×500 | A variety of temperature and low pressure gas | |
SKLGCX | Trapped inside a small orifice | DN≤40 | A variety of temperature and pressure of gas, liquid and small streams | |
SKLGDT | End orifice | DN≥25 | Under normal temperature, atmospheric pressure of air flow | |
SKGBXL | Throttling orifice plate | DN10~500 | Dedicated to all kinds of temperature, pressure of gas, liquid, steam, is not used for flow measurement | |
SKLGPH | Balance of porous orifice plate | 50~1000mm | Gas-liquid two phase, all sorts of mixed gases, the double flow direction |
Note: if users need is beyond the scope list use or need to change the structure, the company look forward to your consultation or negotiation.
4, structure and diagram
Listed in table a in figure 2 is part of the throttle device and its variant structure diagram and the reference for the user.
A, Orifice plate

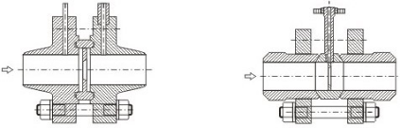

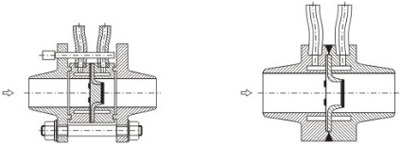

Annulus pressure standard orifice plate Direct drilling pressure standard orifice plate

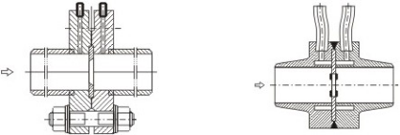

Flange pressure standard orifice plate Welding standard orifice plate of high temperature and high pressure

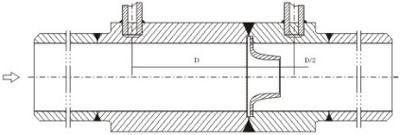

Diameter of pressure (D - D / 2) standard orifice plate 1/4 round orifice (nozzle)

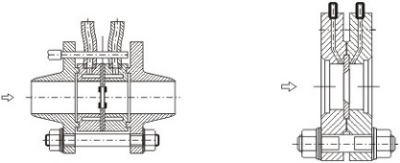

Metal pads flange pressure standard orifice plate High pressure orifice (32 mpa) lens

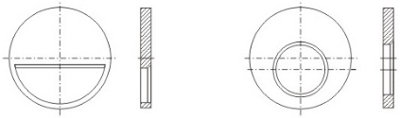

Segmental orifice (draw the orifice plate piece only) Eccentric orifice (draw the orifice plate piece only)

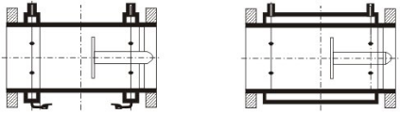

Special gas annular orifice (with equalizing ring, drain valve) With insulation (or cooling) jacketed circular orifice
B, nozzle type
Standard nozzle Welding standard of high temperature and high pressure spray nozzle
Welding length to diameter nozzle of high temperature and high pressure
C, venturi tube clamp

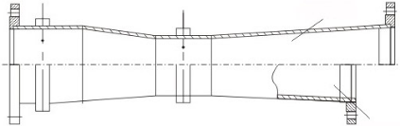

Classic venturi tube (classic)
