The orifice plates meter are usually used in pipe sizes exceeding four inches in diameter, and must be carefully installed to make sure that no portion of the flange or gasket interferes with the opening. Flange taps are used with both types of plates, an

The concentric orifice plate flow meter has a sharp concentric bore that provides an almost pure line contact between the plate and the fluid, with negligible friction drag at the boundary. The diameter ratios of concentric orifice plates range from 0.25

Exploring the physics and engineering behind this design, requires looking at basic magnetism. A standard bar magnet has two magnetic poles: north and south.

An orifice plate is called a calibrated orifice if it has been calibrated with an appropriate fluid flow and a traceable flow measurement device.

The magnetic float level gauge operates using a float, with an internally sealed magnet, that rises and falls inside the tubular chamber connected at the top and bottom to the storage tank.

The pressure in a pipe of still fluid and the pressure in the same pipe with the fluid now moving are different. If a pressure gauge were mounted on the pipe it would read a higher pressure when the fluid was still than when it was flowing through the pip

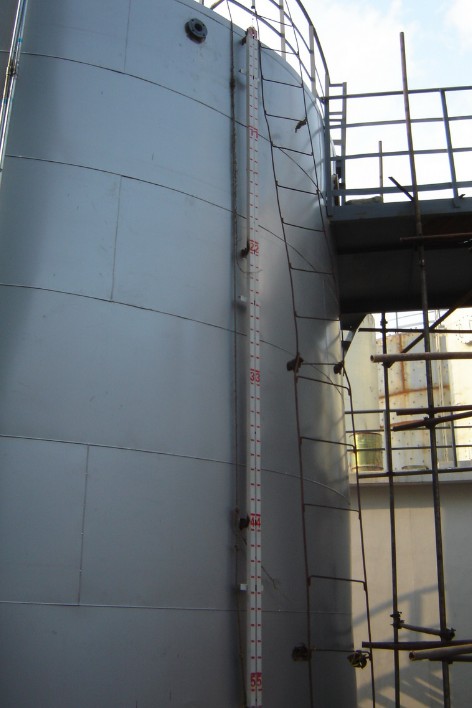

Each flap in the indicating rail is fitted with a permanent magnet which makes our level gauge unaffected by shocks, vibrations and high temperatures. Also moisture and / or an aggressive environment are no problem for this level gauge.

This technology has a number of advantages when it comes to liquid flow measurement. The sensors are generally inserted in line into the pipes’ diameter, and are therefore designed such that they do not disturb or restrict the flow of the medium under mea

The orifice plate flow meter is commonly used in clean liquid, gas, and steam services. It is available for all pipe sizes but it is very cost-effective for measuring flows in larger ones. The orifice plate is also approved by many organizations for custo
